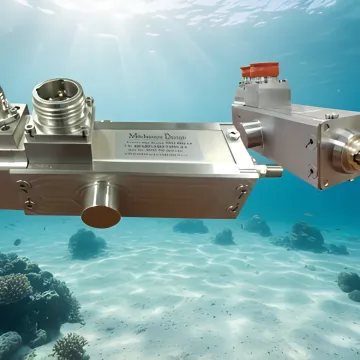

All actuators are available in Stainless Steel 316 (SST 316) or Titanium. Both materials provide superior corrosion resistance for long-term deployment in saltwater and chemically aggressive underwater environments. The choice between them depends on weight constraints, budget, and the specific corrosion demands of your application.

Force output ranges from 1,000 N (220 LBS) up to 77,500 N (approximately 7,000 LBS) depending on the model selected. The Trunion series offers the widest scalable range, while the 60,000 N Force model delivers up to 50,000 N of continuous axial force for the most demanding heavy-duty applications.

The 60,000 N Force and Trunion 1000N models use a rotary resolver mounted on the motor shaft for precise position feedback. The Self-Compensated model features a 30-bit absolute encoder on the output shaft with 14-bit resolution per turn, retaining positional data between power cycles without requiring rehoming.

The Self-Compensated Linear Actuator supports RS422 (RS485 full duplex on 4 wires) and RS232 serial communication at 19200 baud. The 60,000 N Force and Trunion models use external resolver feedback for control. Driver and control logic are not included with those models, allowing integration with customer-supplied controllers.

The Linear Actuator 60,000 N Force operates on 230 VDC. The Trunion 1000N series supports 24 VDC, 48 VDC, or 230 VDC inputs depending on configuration. The Self-Compensated model runs on 24 VDC. This range of voltage options makes the products suitable for a variety of ROV power bus and subsea control system standards.

Yes. PDF drawings and STEP files are available for download for the 60,000 N Force and Trunion 1000N models to support mechanical integration. The Self-Compensated actuator includes an Interface & Integration Guide, Quick Start Guide, Windows Utility Manual, assembly drawing, and a Windows software utility (DCBL_ABS_Control_Lin_8_1) for commissioning and configuration.
