Linear Actuator Suppliers in New Hampshire

All actuators are available in Stainless Steel 316 (SST 316) or Titanium. Both materials provide exceptional corrosion resistance for prolonged exposure to seawater, saline environments, and the chemical demands of offshore oil and gas or marine research applications.

Axial force output ranges from 1,000 N (220 lbs) on the entry-level Trunion model up to 77,500 N (7,000 lbs) on the high-force variant, and up to 50,000 N on the 60,000 N Force model. This range accommodates lightweight ROV tasks through heavy-duty subsea valve and pipeline control.

The 60,000 N Force and Trunion 1000N models use a rotary resolver mounted on the motor shaft for accurate position feedback. The Self-Compensated model features an absolute 30-bit multi-turn encoder on the output shaft, retaining position information between power cycles without requiring re-homing.

The Trunion 1000N supports 24 VDC, 48 VDC, and 230 VDC supply options. The 60,000 N Force model operates on 230 VDC. The Self-Compensated model runs on 24 VDC. Contact the manufacturer to confirm the best supply voltage for your specific system architecture and ROV power bus.

The Self-Compensated Linear Actuator communicates via RS422 (RS485 full duplex on 4 wires) or RS232 serial protocol at 19200 baud. All driver logic is housed internally, enabling standalone position control without external controllers. Configurable parameters are stored in onboard EEPROM for flexible, repeatable deployments.

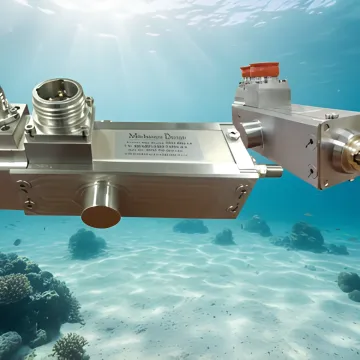

The 60,000 N Force and Trunion 1000N models use Seacon underwater connectors, a widely recognized standard in subsea and ROV systems. The Self-Compensated model uses an MCBH8M Subcon 8-pin underwater connector with a 12-inch MCIL8F whip, compatible with common underwater cable assemblies.
